Total magnification: 1600X
Eyepieces: widefield WF10X/18 and WF 16X;
Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil);
Viewing head: 45 degrees inclined 360 degrees swiveling binocular;
Interpupillary distance: sliding adjustment 2-3/16inch ~ 2-15/16inch (55~75mm);
Diopter: adjustable on both eyepiece tubes;
Nosepiece: revolving quadruple
Stage: double layer X-Y mechanical stage with scales, size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage X-Y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm);
Condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment;
Illumination: transmitted, LED light, intensity adjustment
Focus adjustment: coaxial coarse and fine knobs on both sides;
Stage upward moving lock protects objectives and slides; All metal mechanical components; 100-piece blank slides with 100-piece covers and 100-sheet lens cleaning paper included;
Power supply: AC/DC adapter, 100V-240V (UL approved)

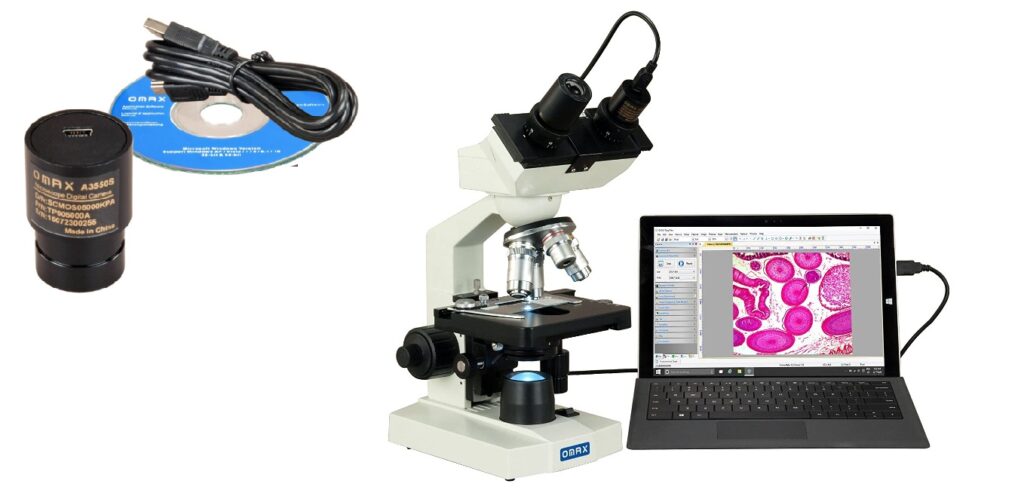

Digital camera: – True color 640×480 pixels (0.3MP) – Frame speed: 30fps at 640×480 – Software compatible with Windows and Mac OS X operating systems – Offers capturing still images, stitching, EDF, video recording and measurement functions – USB cable included
