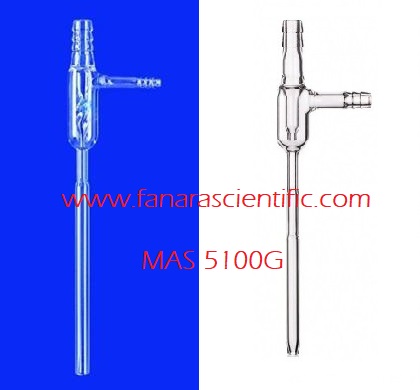

Water jet vacuum pump in borosilicate glass 3.3 for vacuum circuits in laboratory equipment.
The total length is 320 mm and the upper diameter of the tube is 18 mm (ø) which is connected to the water circuit. The water pressure must be at least 4 kg/cm².
The side extension tube is 10 mm ø to connect to the system, usually a Kitasato flask, by means of a rubber tube.
The vacuum pressure of this instrument is maximum 17 mm Hg (approximate).
