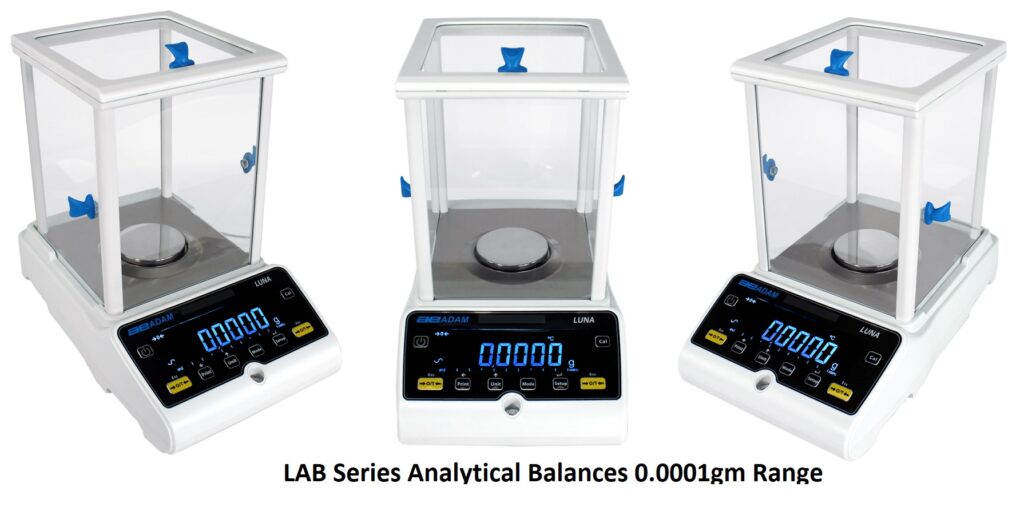

With stylish, modern backlighting, Luna’s impressive display gives an aura of smart sophistication. The LCD features large, readily discernible 24mm digits in blue on a black background. Multilingual text and display capability make Luna well-suited for users in various regions. Luna provides USB and RS-232 interfaces for speedy data collection and transmission to computers or printers. ABS plastic construction and rugged grade 304 stainless steel pan mean Luna is easy to clean and can withstand demanding lab use. Available in four models with capacities up to 250g, Luna offers a readability of 0.0001g and can perform basic and detailed measuring tasks.
| Model | Capacity | Readability | Pan Size |
| LAB 84e | 80g | 0.0001g | 80mm ø |
| LAB 124e | 120g | 0.0001g | 80mm ø |
| LAB 214e | 210g | 0.0001g | 80mm ø |
| LAB 254e | 250g | 0.0001g | 80mm ø |
| LAB 84i | 80g | 0.0001g | 80mm ø |
| LAB 124i | 120g | 0.0001g | 80mm ø |
| LAB 214i | 210g | 0.0001g | 80mm ø |
| LAB 254i | 250g | 0.0001g | 80mm ø |
Features and Benefits
Hardware
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows swift cleaning
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
Software
- External calibration allows for verification and adjustment with weights
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Multilingual display allows use in many different countries
- Parts counting with preset sample sizes
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
- Auto power-off to save energy
Display
- Vivid, backlit LCD easily visible in any lighting conditions
Power
- AC adapter included
| Readability | 0.0001g | Weighing Units | mg, g, ct, GN, N, dr, oz, ozt, dwt, mm, tl.T, tl.H, tl.S, T, custom unit |
| Calibration | External =e Internal= i | Stabilization Time | 2.0 |
| Linearity | 0.0003g | Power Supply | 18VDC 830mA adapter |
| Construction Body | ABS Plastic | Interface | RS-232, USB |
| Display Digit Height | 24mm | Overall Dimensions | 224x374x338mm (wxdxh) |
Manual (English): Luna Analytical Balances – Luna_UM_EN.pdf
Datasheet (English): Luna Analytical Balances – LAB-Luna-DS-A4-EN.pdf
