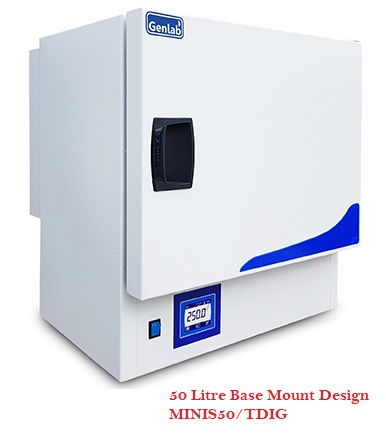

| MINIS Series.
|

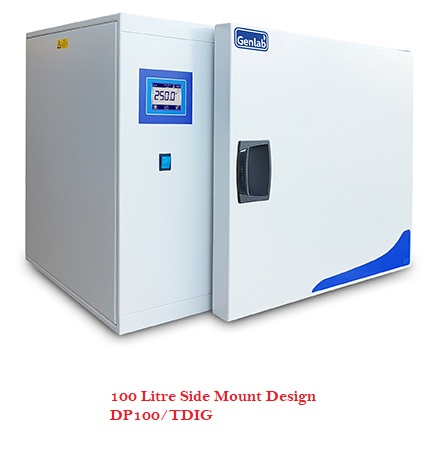

DP Series
The Genlab range of Dual Purpose Ovens / Incubators combine the advantage of two temperature ranges in the same unit. Using bespoke firmware designed specifically for this chamber size, and a calibration class temperature sensor, we can offer accurate control up to 250.0ºC without temperature overshoot. The same chamber can also maintain a steady 30.0ºC* constant temperature by simply adjusting the set point. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs. Specifications
- 10 sizes 6 to 200 litres (base mount controller design)
- 6 sizes 50 to 200 litres (side mount controller design)
- Temp range (Ambient +8ºC) to 250.0ºC
- Resolution 0.1ºC
- On screen historical trending (48 hours)
- Manual or automatic overheat reset
- High accuracy Pt100A duplex sensors<0.6ºC
- Excellent stability <+/-0.6ºC (fan assisted)
- Low chamber uniformity
- Energy efficient with integral energy meter
- New – Set point lock feature
Options
- Fan assisted circulation (not available <30L)
- Stainless steel chamber
- 8 Stage profile control
- Count down timer
- 24/7 real time clock operation
- 10 Menu x 8 Stage Profile Controller with Cyclic feature
- Access ports (25, 50, 75 or 100mm)
- Audible warnings
- Traceable calibrations to national standards
- Bespoke stands and stacking kits
- Extractor unit
- Extended warranty
- Explosion relief panels (DP style only)
- Bespoke solutions available upon request
Benchtop Oven Specifications
| Genlab ref. Number |
Capacity
(litres) |
Internal dims. Natural Convection
|
External dims. |
Internal dims. External dims. |
No of
Shelves..
Positions
|
Wattage
|
Weight
(kg) |
|
|
Natural Convection
|
Fan assisted
|
Fan assisted
|
||||||
| Base mount design |
(H x W x D cms)
|
(H x W x D cms) | (H x W x D cms) |
(H x W x D cms)
|
||||
| MINIS/6/TDIG | 6 | 15 X 23 X 19 | 46 x 35 x 33 | N/A | N/A | 1..1 | 350 | 16 |
| MINIS/18/TDIG | 18 | 26 x 26 x 27 | 55 x 38 x 41 | N/A | N/A | 1..1 | 500 | 21 |
| MINIS/30/TDIG |
30
|
24 x 36 x 35
|
51 x 48 x 49 |
24 x 36 x 31
|
51 x 48 x 63
|
2..2
|
750 |
30
|
| MINIS/40/TDIG |
40
|
32 x 36 x 35
|
54 x 48 x 49
|
32 x 36 x 31
|
54 x 48 x 63
|
2..3
|
750
|
35
|
| MINIS/50/TDIG |
53
|
33 x 49 x 33
|
66 x 63 x 47
|
33 x 49 x 29
|
66 x 63 x 61
|
2..3
|
750
|
45
|
| MINIS/75/TDIG |
73
|
33 x 49 x 45
|
66 x 63 x 60
|
33 x 49 x 41
|
66 x 63 x 74
|
2..3
|
1000
|
55
|
| MINIS/100/TDIG |
99
|
45 x 49 x 45
|
78 x 63 x 60
|
45 x 49 x 41
|
78 x 63 x 74
|
3..4
|
1000
|
60
|
| MINIS/125/TDIG |
121
|
55 x 49 x 45
|
88 x 63 x 60
|
55 x 49 x 41
|
88 x 63 x 74
|
3..5
|
1500
|
65
|
| MINIS/150/TDIG |
143
|
55 x 49 x 53
|
88 x 63 x 68
|
55 x 49 x 49
|
88 x 63 x 82
|
3..5
|
1500
|
70
|
| MINIS/200/F/TDIG |
180
|
N/A
|
N/A
|
75 x 49 x 49
|
108 x 63 x 84
|
4..7
|
2000
|
75
|
| Side mount design | ||||||||
| DP/50/TDIG | 58 | 42 x 40 x 35 | 58 x 73 x 48 | 45 x 36 x 35 | 58 x 73 x 48 | 2..3 | 750 | 35 |
| DP/75/TDIG | 78 | 42 x 53 x 35 | 58 x 85 x 48 | 45 x 49 x 35 | 58 x 85 x 48 | 2..3 | 1000 | 45 |
| DP/100/TDIG | 102 | 42 x 53 x 46 | 58 x 85 x 59 | 45 x 49 x 40 | 58 x 85 x 59 | 3..4 | 1000 | 55 |
| DP/125/TDIG | 126 | 52 x 53 x 46 | 69 x 85 x 59 | 55 x 49 x 46 | 69 x 85 x 59 | 3..5 | 1500 | 65 |
| DP/150/TDIG | 149 | 52 x 53 x 54 | 69 x 85 x 67 | 55 x 49 x 54 | 69 x 85 x 67 | 3..5 | 1500 | 70 |
| DP/200/TDIG | 198 | N/A | N/A | 75 x 49 x 54 | 89 x 85 x 67 | 4..7 | 2000 | 90 |
Where options are required simply add the option code to the original reference.
E.g. MINIS/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINIS/50/TDIG/SS/FContact sales for bespoke options
Option codes
Fan Assisted Circulation – F
Stainless Steel Chamber – SS
3 Stage Advanced Timer – TIM
Access Ports – AP
Audible Warning – AWA
Single Points Calibrations – SPC
Temp Uniformity Surveys-TUS
Extraction Systems – EXT
Extended Warranty – X1
Explosion Relief Panels (DP style only) – EXP
The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.
They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.
