Signal Generator-4096, Sine Wave Generator-4097, Vibration Generator with Signal Generator-139KIT

This image has an empty alt attribute; its file name is Signal-Generator-New-.jpg

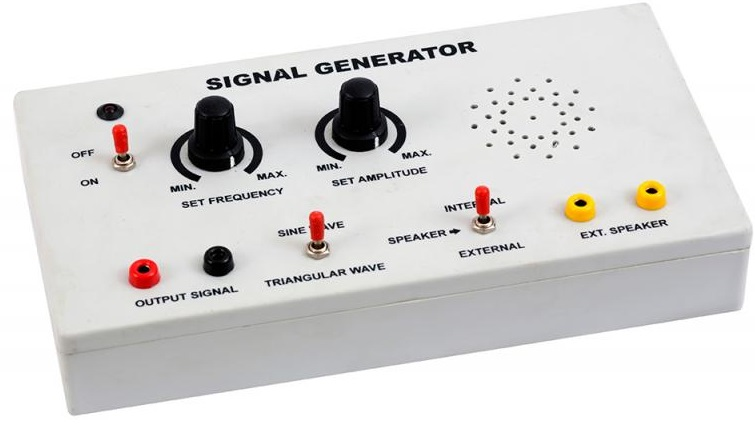

Signal Generator – MAS 4096
  • Capable to generate the (sine/triangular)wave signals with in range (100 Hz to 3 kHz) at 3W output maximum. An internal speaker fitted inside the plastic moulded case and we can also use an external speaker via. 4 mm blue sockets. Two colour-coded sockets are used for CRO connections marked as output signal. Operating voltage for the instrument is 9V DC and applied by a battery which can easily remove out from the battery compartment. The frequency and amplitude can be adjusted at any desired range by just rotating the knobs fitted on the base.

Applications

Test & Measurement, RF Communications, Maintenance & Repair



Sine Wave Signal Generator – MAS 4097

The Sine Wave Generator is an excellent tool for generating waves with speakers or for our Mechanical Wave Driver

Sine Wave Generator with our Mechanical Wave Driver to form a vibration demonstration that shows sine waves as they travel across a medium. Students can observe the quantum nature of standing wave patterns as the Sine Wave Generator jumps from one resonant frequency to the next.

This Sine Wave Generator allows both the frequency (1-400 Hz/1 Hz resolution and 10-4000 Hz/10 Hz resolution) and amplitude of the sine wave output to be varied.

Our Mechanical Wave Accessories Bundle offers everything you need to get the most out of the Sine Wave Generator.

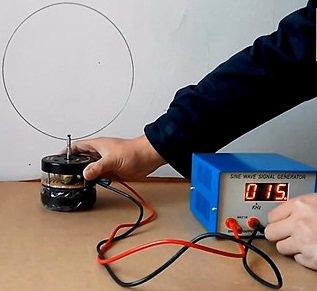

  Vibration Generator and Sine Wave Signal Generator Full Set – MAS 139 Kit



Wave generators have the main function: to create in the laboratory mechanical vibrations of variable frequency and variable amplitude. This simple function has endless applications:

· A wave transmitted to a wire or string

· Frozen Plates

· Resonant bands and wire loop (Bohr atom model)

· Modes of vibration of springs

· Resonance of everything that vibrates.

The mechanical wave generator is durable and versatile and can be used to change the amplitude and / or control any wave experiment at specific frequencies.

Characteristics:

· The speaker can vibrate at any frequency from 0.1 Hz to 5 kilohertz (kHz) with an amplitude of up to 5 millimeters (mm) from peak to peak in the lower zone of the frequency range up to 50 Hz.

· The mechanical oscillation generator is designed for installation in an upright position or on its side (put on its side using a rubber base). It can also be mounted on a rod with a diameter of up to 12.7 mm (1/2 ”) in a vertical or horizontal position.

· For quantitative resonance experiments, accurate frequency measurement is necessary. A functional generator with a minimum of ± 8 V, 0.5 A is required.

Many accessories are available
