Charged side chains
When an amino acid (AA) is incorporated into a polypeptide, the charges on the amino and carboxyl groups disappear. Among the 20 common amino acids, five have a side chain which can be charged. At pH=7, two are negative charged: aspartic acid (Asp, D) and glutamic acid (Glu, E) (acidic side chains), and three are positive charged: lysine (Lys, K), arginine (Arg, R) and histidine (His, H) (basic side chains).
The charge on the amino acid side chain depends on the pK of the AA (Table 1) and on the pH of the solution.
- Negative charged (acidic side chains): aspartic acid and glutamic acid.
At a pH superior to their pK (Table 2), the carboxylic side chains lose an H+ ion (proton) and are negative charged. They are therefore acid.
2. Positive charged (basic side chains): lysine, arginine and histidine
At a pH superior to their pK (Table 2), the amine side chains are uncharged.

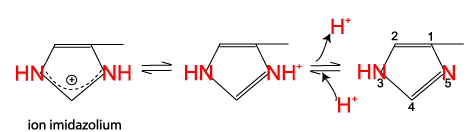

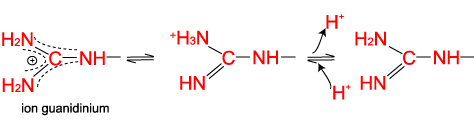

At a pH inferior to their pK, the lysine, arginine and histidine side chains accept an H+ ion (proton) and are positive charged. They are therefore basic.

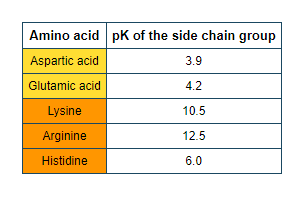

Table 1: pK of the amino acid side chain group. The pK of the side chain group is the pH at which exactly half of a carboxylic or amine group is charged.

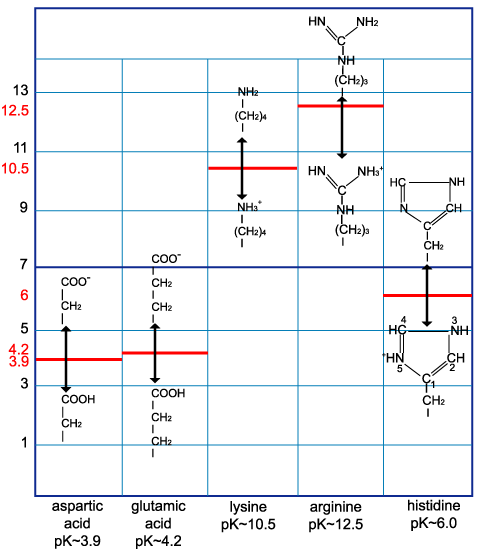

Table 2: Charge of the amino acid side chains. Only the side chains are shown.
At pH=7, side chains of the 5 amino acids are charged.
Fifteen AA have uncharged side chains. They are: A, N, C, Q, G, I, L, M, F, P, S, T, W, Y, V.
Hydrogen donor and acceptor atoms of the amino acid side chains
Click here for Amino acid atoms nomenclature.
- 3 amino acids (arginine, lysine and tryptophan) have hydrogen donor atoms in their side chains.
- 2 amino acids (aspartic acid, glutamic acid) have hydrogen acceptor atoms in their side chain.
- 6 amino acids (asparagine, glutamine, histidine, serine, threonine and tyrosine) have both hydrogen donor and acceptor atoms in their side chains.

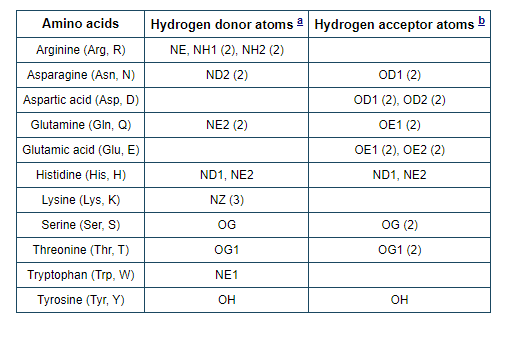

Table 3: Hydrogen donor and acceptor atoms in amino acid side chains.
b Between parentheses, number of hydrogen bonds that an acceptor atom can accept, if more than one.
9 amino acids (alanine, cysteine, glycine, isoleucine, leucine, methionine, phenylalanine, proline, valine) have no hydrogen donor or acceptor atoms in their side chains.
Polarity of the amino acid side chains
Amino acid side chains with hydrogen donor and/or acceptor atoms are polar
There are 10 polar amino acids (same amino acids as in Table 3, except tryptophan usually nonpolar): D, E, H, K, R, N, Q, S, T, Y, that fall into 2 categories:
- In the side chains of the first 5 amino acids (D, E, H, K, R), the atoms are charged.
- acidic: aspartic acid (Asp, D) and glutamic acid (Glu, E).
- basic: histidine (His, H), lysine (Lys, K) and arginine (Arg, R).
These 5 amino acids:- are very polar.
- are hydrophilic (or neutral, for histidine) and nearly always found on the outside of proteins.
- can be engaged in ionic bonds (through electrostatic attraction).
- In the side chains of the other 5 amino acids (N, Q, S, T, Y), the atomes are uncharged (the atoms belong to polar, but uncharged, -NH2 or -OH groups):
- -NH2 group: asparagine (Asn, N) and glutamine (Gln, Q).
- -OH group: serine (Ser, S), threonine (Thr, T) and tyrosine (Tyr, Y).
These 5 amino acids:- are polar.
- are hydrophilic (Q, N) or neutral (S, T, Y) and are usually on the outside of proteins.
- are frequently engaged in hydrogen bonds.
Amino acid side chains without hydrogen donor and/or acceptor atoms are nonpolar
There are 10 nonpolar amino acids (including the tryptophan, despite an hydrogen donor atom): A, C, G, I, L, M, F, P, V, W.
These nonpolar amino acids:
- tend to cluster their side chains together in the inside of proteins.
- are frequently engaged in Van der Waals interactions.
Paired cysteines allow disulfide bonds.
