◆ Two-year warranty
◆ Vacuum / pressure in one machine
◆ Prote™ overflow protection
◆ Moisture trap with filter cartridge
◆ Thermal protection device
◆ CE, RoHS certification
◆ IP 30 protection
| ▸ Rocker 430: 110V/60Hz ▸ Max. power: 147W ▸ Max. current: 1.5A ▸ Max. vacuum: 145 mbar ▸ Max. pressure: 80 psi ▸ Max. flow rate: 34 L/min ▸ Motor rotation speed: 1750 RPM ▸ Horse power: 1/6 HP ▸ Noise level: 52 dB ▸ Hose barb: ID8 (5/16 inch) ▸ Net weight: 5.5Kg ▸ Dimension (LxWxH): 24.7 x 23.5 x 20.4 cm ▸ Vacuum Gauge: Yes ▸ Vacuum Regulator: Yes ▸ Overflow protection: Yes ▸ Thermal protection: Yes | ▸ Rocker 430: 220V/50Hz ▸ Max. power: 125W ▸ Max. current: 0.6A ▸ Max. vacuum: 145 mbar ▸ Max. pressure: 80 psi ▸ Max. flow rate: 28 L/min ▸ Motor rotation speed: 1450 RPM ▸ Horse power: 1/6 HP ▸ Noise level: 52 dB ▸ Hose barb: ID8 (5/16 inch) ▸ Net weight: 5.5Kg ▸ Dimension (LxWxH): 24.7 x 23.5 x 20.4 cm ▸ Vacuum Gauge: Yes ▸ Vacuum Regulator: Yes ▸ Overflow protection: Yes ▸ Thermal protection: Yes |
Oil Free Vacuum / Pressure Pump Features
- Vacuum / pressure in one machine
Rocker 430 lab pump works as both vacuum pump and compressor. Equipped with gauges and regulators for easy monitoring and adjusting the vacuum level or delivery pressure. - No air pollution, maintenance free
Rocker series lab pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution. - Prote™ overflow protection

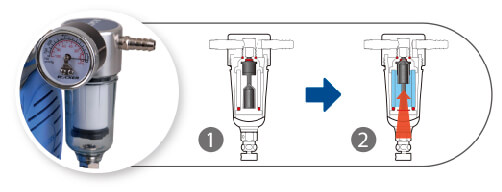

Rocker 430 lab pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.
- Moisture trap with filter cartridge
Rocker 430 lab pump is equipped with filter cartridge at the air inlet and outlet to filter particle and moisture to prolong the life of pump. - Thermal protection device
Every motor of Rocker series lab pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
Oil Free Vacuum Pump / Dry Vacuum Pump Video
Oil Free Vacuum / Pressure Pump International Certificates
- CE certification
- IP 30 protection
- RoHS certification
Oil Free Vacuum / Pressure Pump Applications
- Microbial detection
- Air sampling
- Suspended solid test
- Vacuum filtration
- Pressure filtration
Oil Free Vacuum / Pressure Pump Order Information
| Product Part Number | Product |
| 167430-11167430-22 | Rocker 430, Oil Free Vacuum Pump AC110V, 60Hz Rocker 430, Oil Free Vacuum Pump AC220V, 50Hz |
